Trac-Vac Dump-From-Seat (DFS) Series

Original price $4,295.00 - Original price $4,295.00
Original price
$4,295.00
$4,295.00 - $4,295.00
Current price $4,295.00

Maximum Productivity Without Ever Leaving the Mower Seat

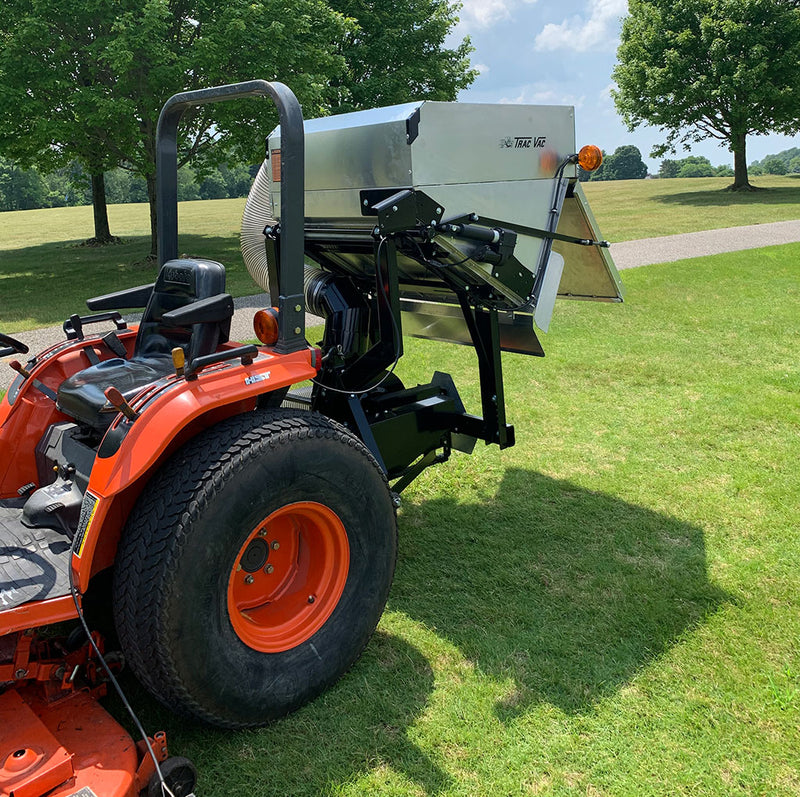

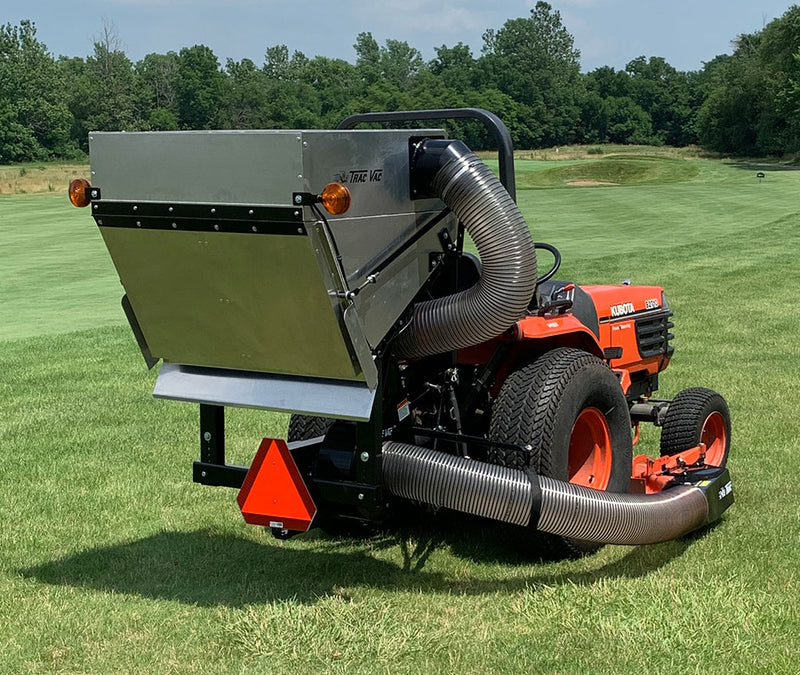

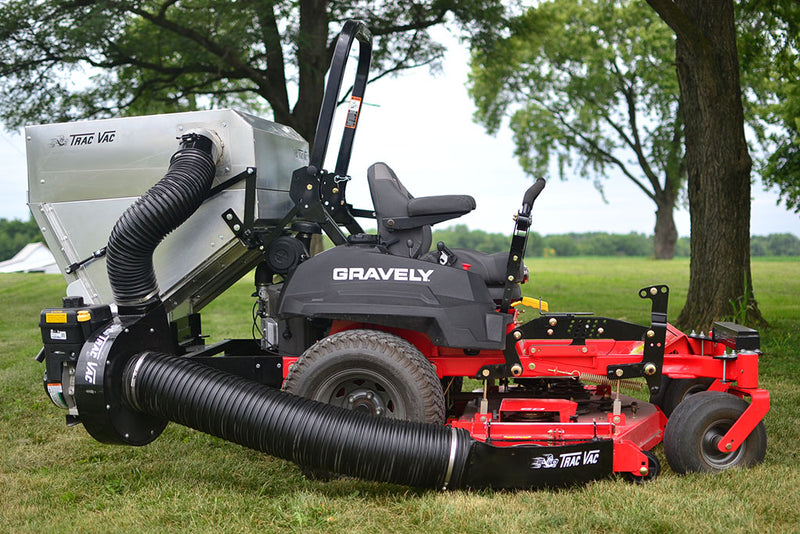

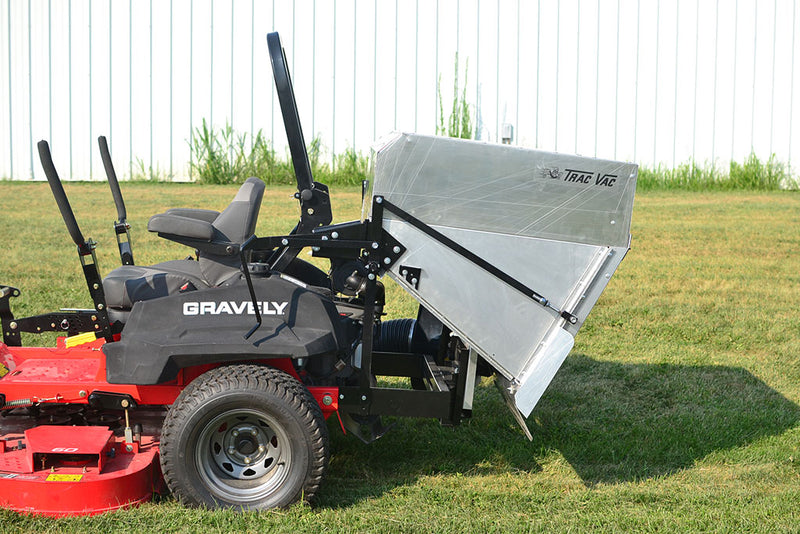

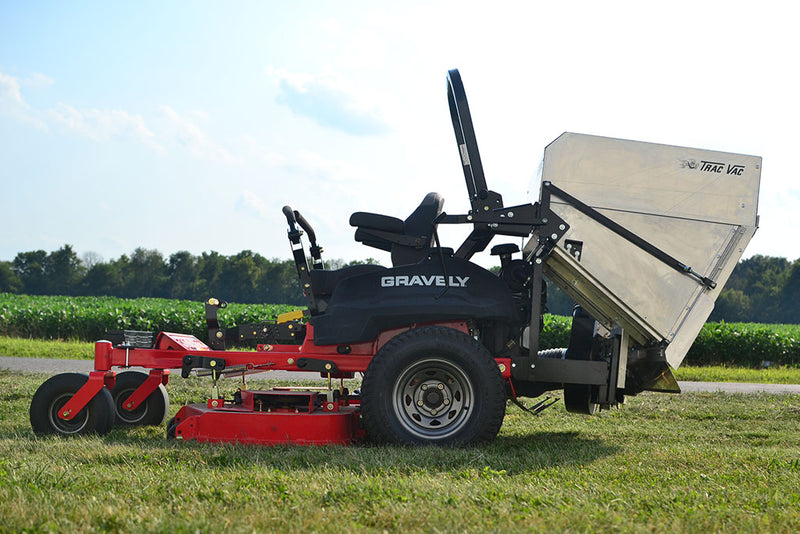

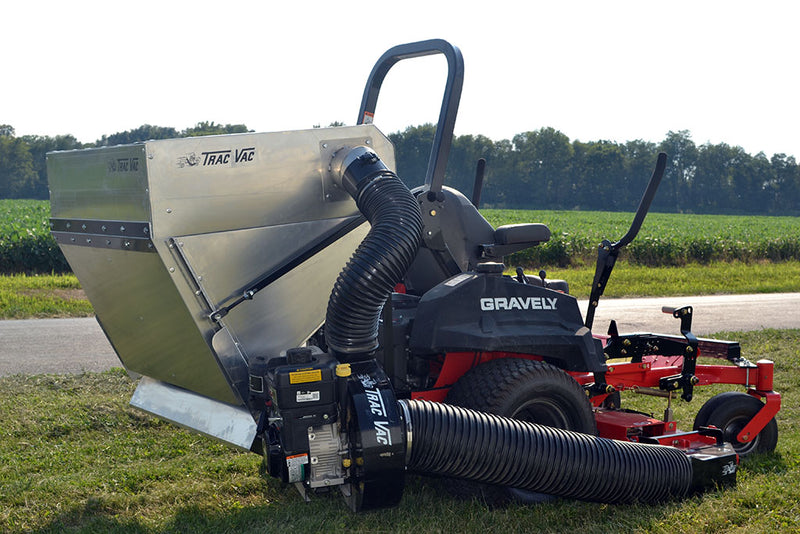

The Trac-Vac Dump-From-Seat (DFS) units are specialized collection systems designed for the ultimate in operator convenience and productivity. Engineered for both professional landscapers and homeowners with large properties, these units allow you to collect and empty debris without ever dismounting your tractor. With a simple push-and-pull lever system, you can clear a full load and get back to work in seconds.

Key Features

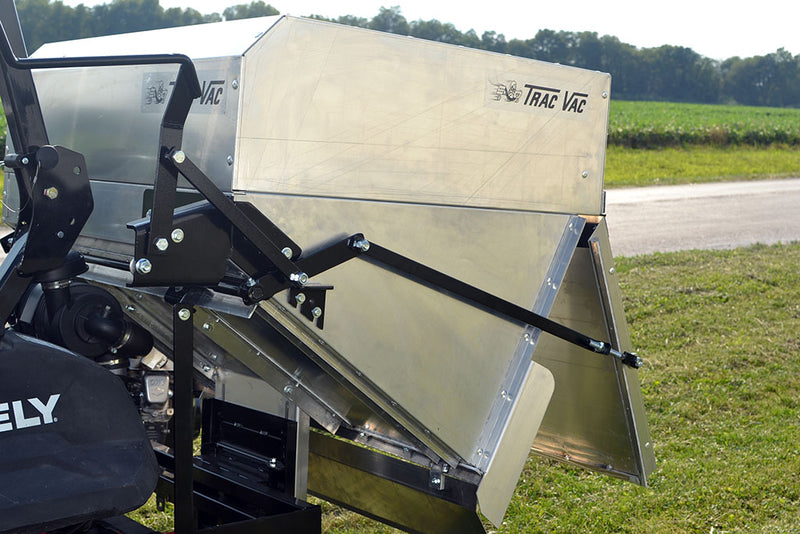

  • One-Lever Operation: A specialized lever allows the operator to release and open the hopper from the driver's seat. Once empty, simply pull the lever back to lock the hopper in place and continue mowing.

  • 12-Bushel Capacity Hopper: Each DFS model features a rugged, lightweight hopper designed for efficient debris storage and smooth dumping.

  • High-Velocity 8-Inch Hoses: Equipped with 8-inch diameter hoses to ensure maximum airflow and minimize the risk of clogs, even when handling damp leaves or heavy grass clippings.

  • Lightweight & Maneuverable: Constructed with high-quality materials to remain lightweight and easy to handle, ensuring your mower maintains its agility.

  • Easy Detachment: Designed to detach quickly from the tractor, allowing you to return to standard mowing or store the unit with minimal effort.

  • Rust-Free Design: Built to withstand the elements, ensuring a long service life with minimal maintenance.

  • American Made: Proudly produced in Indiana using state-of-the-art machinery and premium materials.


Model Configurations

Trac-Vac offers the DFS system in several power configurations to match your specific equipment:

Model Power Source / Engine Impeller Size
DS12PTO Tractor PTO (540 RPM) 12" Impeller
DS55B 200cc Champ Engine (FX200) 12" Impeller
DS65B 230cc Champ Engine 14" Impeller

Technical Specifications

Feature Details
Collection Capacity 12 Bushels
Hose Diameter 8" Intake
Operation Type Mechanical Lever (Dump From Seat)
Impeller Options 12" or 14" (Model dependent)
Construction Rust-Free, Lightweight Materials
Application Professional & Residential Landscaping
