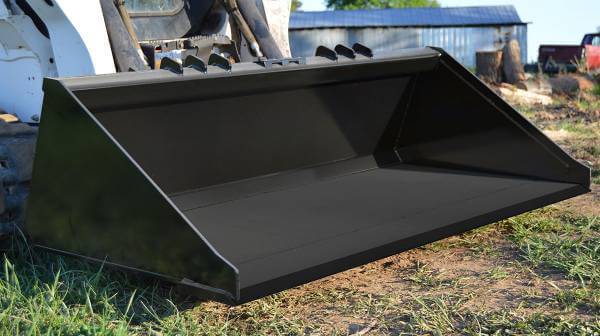

Loflin Fabrication Heavy Duty (HD) Low Profile Skid Steer Bucket
Loflin Fabrication Heavy Duty (HD) Low Profile Skid Steer Bucket

Loflin Fabrication Heavy Duty (HD) Low Profile Skid Steer Bucket

$1,485.00 - $2,779.00
$1,485.00
$1,485.00 - $2,779.00
$1,485.00
Size (Inch): 60
Edge: Smooth Edge
Bucket Bottom: Standard Bottom

Industrial Strength Performance: Precision Grading for Powerful Machines

The Loflin Fabrication Heavy Duty (HD) Low Profile Bucket is the industrial-strength evolution of the standard low-profile design. Specifically engineered for high-horsepower skid steers and all track loaders, this bucket utilizes thicker, heavier steel to withstand the extreme breakout forces of modern machinery. While maintaining the superior operator visibility required for surgical grading and leveling, the HD model provides the structural rigidity needed for aggressive excavation and heavy material handling in the most demanding commercial environments.

Key Features

  • Massive Structural Reinforcement: Built with a 1/2” thick steel bottom and 1/4” thick steel sides, making it significantly more durable than standard light-duty buckets.

  • Superior Cutting Edge: Equipped with a formidable 1” thick x 8” wide high-carbon steel cutting edge for extreme wear resistance in abrasive conditions.

  • Enhanced Operator Visibility: The low-profile geometry allows the operator to see the cutting edge clearly from the cab, ensuring precise control over the terrain.

  • Reinforced Quick Attach: Features a 1/4” thick back plate with an additional 1/4” reinforcement plate at the quick-attach points to prevent plate deformation under high loads.

  • Two Floor Length Options: Available with a Standard Bottom for maximum prying power or a 6" Longer Bottom for increased material capacity and easier finishing.

  • Three Edge Configurations: * Smooth Edge: Ideal for finish grading and delicate site work.

    • Bolt-On Edge: Features a reversible double-edge design to protect the bucket’s primary structure.

    • With Teeth: Equipped with aggressive pin-on teeth for breaking up hard-packed clay and rocky soil.

  • High-Horsepower Compatibility: Specifically recommended for machines 70 HP and above, as well as all compact track loaders (CTLs).

  • Treaded Safety Step: Includes an integrated treaded step for safe and secure entry and exit from the skid steer cab.

Technical Specifications

Feature Details
Max Machine HP Recommended 70 HP and Above
Bottom Thickness 1/2" High-Strength Steel
Side Thickness 1/4" High-Strength Steel
Back Plate 1/4" Reinforced (Total 1/2" at Attach)
Cutting Edge 1" x 8" High-Carbon Steel

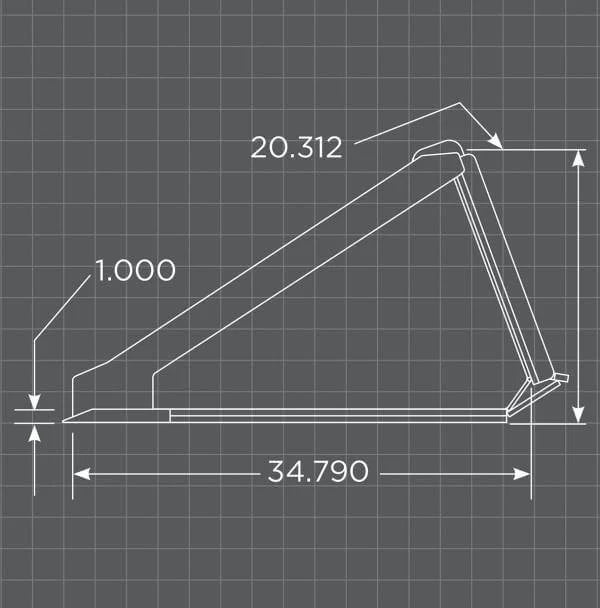

Height 20.3 Inches
Depth 34.8 Inches
Mounting Universal Quick Attach (SAE J2513)
Origin Made in the USA



Size & Weight Guide (Standard Bottom)

Width Dimensions (H x L x D) Weight
60 Inch 20.3" x 60" x 34.8" 573 lbs
66 Inch 20.3" x 66" x 34.8" 619 lbs
72 Inch 20.3" x 72" x 34.8" 654 lbs
78 Inch 20.3" x 78" x 34.8" 695 lbs
80 Inch 20.3" x 80" x 34.8" 721 lbs
84 Inch 20.3" x 84" x 34.8" 747 lbs

Ideal Applications

  • Heavy Excavation: Digging in high-compaction soils and aggressive site clearing.

  • Commercial Grading: Fine-tuning building pads and large-scale parking areas.

  • Material Handling: Transporting dense materials like wet gravel, crushed stone, and concrete.

  • Demolition: Moving heavy structural debris and managing site clean-up.
