Loflin Fabrication Low Profile Skid Steer Bucket
Loflin Fabrication Low Profile Skid Steer Bucket

Loflin Fabrication Low Profile Skid Steer Bucket

$868.00 - $1,972.00
$868.00
$868.00 - $1,972.00
$868.00
Size (Inch): 60
Edge: Smooth Edge
Bucket Bottom: Standard Bottom

Precision Grading & Maneuverability: The Landscape Professional's Choice

The Loflin Fabrication Low Profile Bucket is engineered for operators who demand superior visibility and precise control in confined areas. Its streamlined, low-profile design allows the operator to see the cutting edge clearly from the cab, making it the definitive tool for fine grading, leveling, and site preparation. Built with high-strength American steel and industrial-grade reinforcements, this bucket excels in residential landscaping, urban construction, and light industrial applications where accuracy and maneuverability are paramount.

Key Features

  • Enhanced Operator Visibility: The low-profile geometry provides an unobstructed view of the cutting edge, allowing for surgical precision during delicate grading and material placement.

  • Two Floor Length Options: Choose the Standard Bottom for maximum breakout force and maneuverability, or the 10" Longer Bottom for increased material capacity and easier site leveling.

  • Industrial Build Quality: Constructed from 3/16” thick high-tensile steel sides and bottom, further reinforced with integrated wear bars for maximum durability in abrasive conditions.

  • Superior Cutting Edge: Features a heavy-duty 3/4” thick x 6” wide high-carbon steel cutting edge designed to withstand thousands of hours of aggressive ground contact.

  • Three Edge Configurations: * Smooth Edge: Perfect for finish grading and delicate surface work.

    • Bolt-On Edge: Features a reversible double-edge design to protect the bucket’s primary structure.

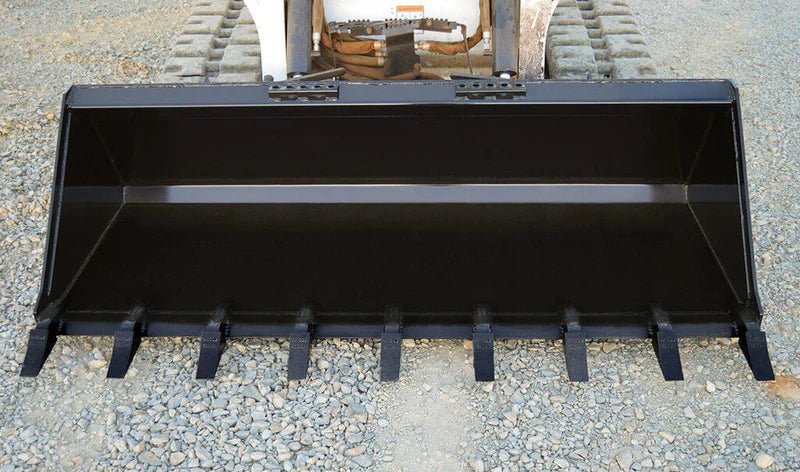

    • With Teeth: Equipped with aggressive pin-on teeth for breaking up hard-packed clay and rocky soil.

  • Universal Skid Steer Mount: Compatible with all standard modern quick-attach systems (Bobcat, Cat, Kubota, Deere, Case, etc.) up to 70 Horsepower.

  • Treaded Safety Step: Includes an integrated treaded step for safe and secure entry and exit from the skid steer cab.

Technical Specifications

Feature Details
Max Machine HP Recommended up to 70 HP
Material Thickness 3/16" High-Strength Steel
Cutting Edge 3/4" x 6" High-Carbon Steel

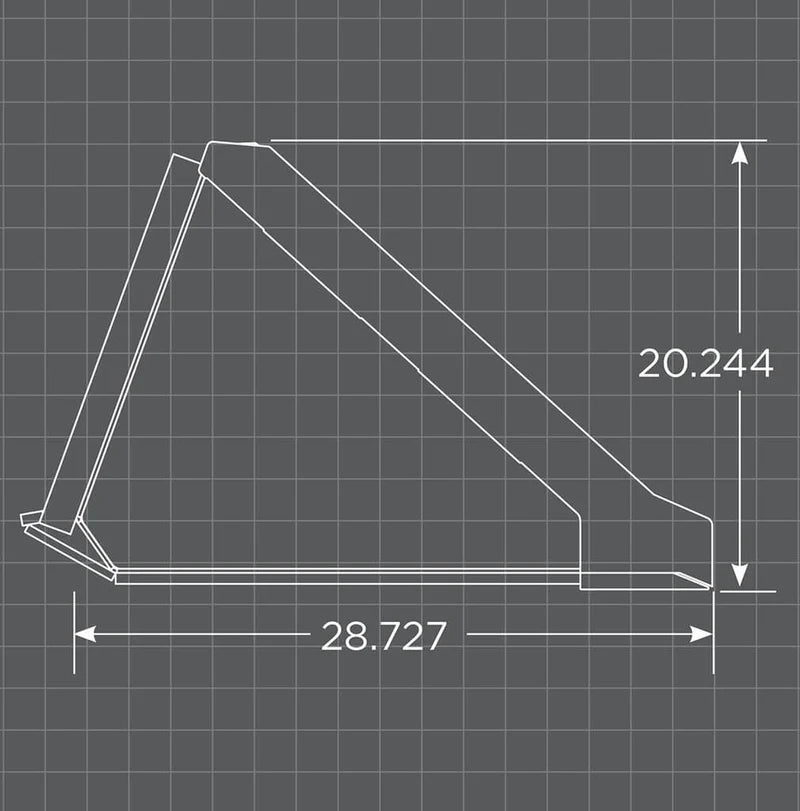

Height 20.2 Inches
Depth 28.7 Inches (Standard Bottom)
Mounting Universal Quick Attach (SAE J2513)
Origin Made in the USA

Size & Weight Guide (Standard Bottom)

Width Dimensions (H x L x D) Weight
60 Inch 20.2" x 60" x 28.7" 345 lbs
66 Inch 20.2" x 66" x 28.7" 354 lbs
72 Inch 20.2" x 72" x 28.7" 378 lbs
78 Inch 20.2" x 78" x 28.7" 412 lbs
80 Inch 20.2" x 80" x 28.7" 425 lbs
84 Inch 20.2" x 84" x 28.7" 442 lbs



Ideal Applications

  • Finish Grading: Smoothing topsoil before sod or seed installation.

  • Site Preparation: Backfilling foundation walls and leveling building pads.

  • Hardscaping: Transporting and placing heavy base materials like crushed stone and pavers.

  • Urban Construction: Maneuvering in tight alleyways and restricted residential lots.
