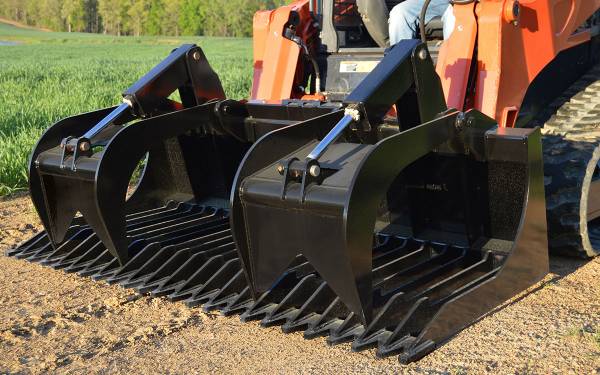

Loflin Fabrication XHD Skid Steer Rock Bucket Grapple

Extra Heavy Duty Land Clearing: The Ultimate Sifting & Securing Tool

The Loflin Fabrication Extra Heavy Duty (XHD) Rock Bucket Grapple is a high-performance hybrid attachment engineered for professional-scale land reclamation. By combining the sifting capabilities of a rock bucket with the aggressive clamping force of a dual-cylinder grapple, this tool allows operators to clean up debris-laden sites while leaving valuable topsoil behind. Whether you are clearing boulders from a field or removing concrete chunks from a demolition site, the XHD Rock Bucket Grapple provides the structural integrity required for the most demanding environments.

Key Features

• Extra Heavy Duty Construction: Built with industrial-grade steel and reinforced high-stress areas to handle the massive breakout forces of modern high-flow skid steers.

• Superior Sifting Design: Features 3-inch tine spacing, allowing fine dirt and small debris to fall through while retaining larger rocks and bulky materials.

• Independent Dual Grapples: Equipped with two independent grapple arms that utilize 1/2” thick steel tines to securely grip uneven and irregularly shaped loads.

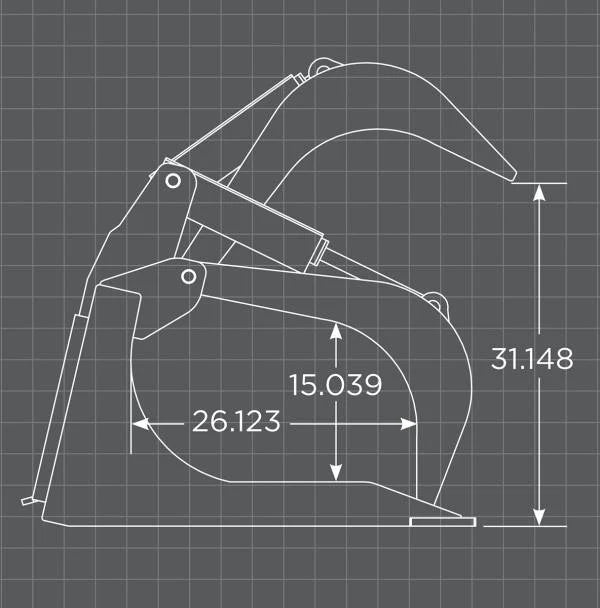

• Powerful Hydraulic Action: Driven by two 2” x 10” hydraulic cylinders, providing a massive 31-inch opening for handling oversized boulders and logs.

• Maximum Hose Protection: Hoses are fully routed and protected within the structure to prevent snagging and damage during aggressive clearing operations.

• Job-Site Ready: Comes standard with Parker brand hoses, fittings, and couplers, ensuring immediate, high-pressure compatibility with your machine.

• Treaded Safety Step: Includes an integrated treaded step for safe and secure entry and exit from the skid steer cab.

Technical Specifications
