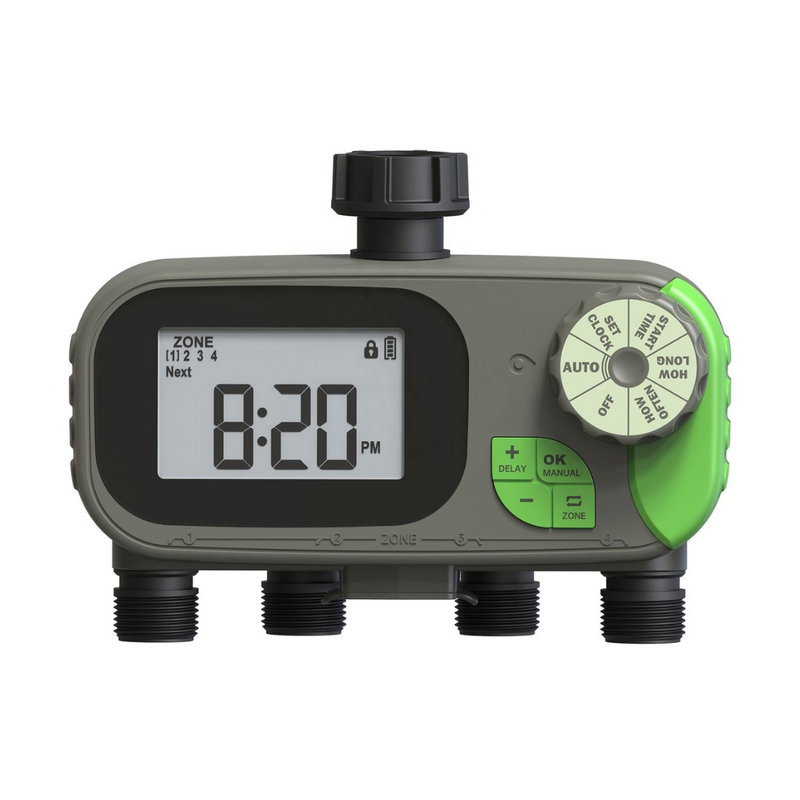

GreenLink QuadZone Pro 4-Zone Sprinkler Controller

The GreenLink QuadZone Pro 4-Zone Sprinkler Controller is a multi-outlet faucet timer with a clear time display, tactile dial, and dedicated zone buttons for effortless scheduling. Manage up to four watering zones from a single spigot, add rain delays, and run manual cycles without disturbing your saved programs—perfect for lawns, beds, and drip lines.

Specifications

• Material: Impact-resistant ABS chassis, TPE grip, brass swivel inlet, EPDM seals

• Dimensions: 220 mm (L) x 95 mm (W) x 160 mm (H)

• Features: 4 independent zones, AUTO/Manual dial, delay button, zone-select keys

• Flow Range: 2–15 GPM @ 30–120 PSI across four outlets

• Programming: Duration 1–240 min, intervals every 1–7 days, per-zone scheduling

Features

• Four Independent Zones: Water lawns, beds, and drip lines on separate schedules

• Intuitive Mode Dial: Switch between SET CLOCK, START, HOW LONG, HOW OFTEN, and AUTO

• Rain Delay Button: Postpone watering 24–72 hours instantly

• Manual Zone Watering: Start any zone without affecting saved programs

• Backlit Clock Display: Large, easy-to-read time with lock icon status

• Battery Efficient: Up to 9 months on 2×AA (not included)

Maintenance

• Daily: Inspect hose ends and splitters for leaks

• Weekly: Clean inlet screen and confirm each zone cycles correctly

• Annually: Drain, remove batteries, and store indoors during freezing months

Warranty

• Manifold & Valve: 2 years

• Electronics: 1 year
